The QF- Quick Fit line of Super Hinges is designed to give solid non flexing support of thin fan base material where disruption of fan operation is not an option. Simple one man installation of the QF-Quick Fit line of Super Hinge can be completed in under 15 minutes without disrupting the fan from service or moving it from the duct surface. Our patent pending pinch fastener design makes mounting and truing of fan bases a breeze. Like the SH-D Standard models, the QF- Quick fit line comes with all adjustment shims and hardware necessary to hinge exhaust fans with various fan-to-duct mismatches or offsets. The QF-Quick Fit line of Super Hinges uses the same patent pending adjustable Pivot Cams for compensation of various height/thickness fan bases during the initial installation by choosing the correct available mounting positions of the lower duct support arms. Once installed, the QF- Quick Fit line of exhaust fan hinge creates a true flush, safe and simple hinging scenario eliminating flexing and vacuum leaks between the fan base and the duct contact surface. This reduces the opportunity for exhausted greases and oils from weeping onto the surface between the fan base and duct.

The QF-Quick Fit Super Hinge is available in sizes capable of hinging fans with bases from 10 inches square to 45 inches. If a fan base exceeds these sizes our Print-N-Fit forms available on this site will instruct you of the measurements needed for us to make custom application hinging systems for unique or oversized fan-to-duct hinging scenarios.

Please remember when choosing a Super Hinge hinging system for proper safe support we recommend choosing a model which supports at least 2/3rds of the fan base. This will help eliminate any flex of the fan base and insure a flush contact point between the fan base and the duct surface.

Click here for examples of sizing.

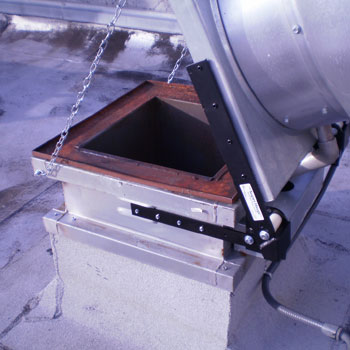

Super Hinge - Quick Fit Version
