Omni Containment Systems - Super Hinge, Standard Version

The SH-D Standard line of Super Hinges has been designed to provide maximum support for the thin material of fan bases in cases when disruption of the fan is not an issue (new construction or fan down time is permissible). The SH-D Standard design gives superior support to vertical and horizontal surfaces of fan bases. Installation requires removing the fan from the duct with minor measuring and drilling of the fan base to secure the system. Versatility for all fan-to-duct offsets is possible with the supplied shim kits, making a secure centered fan to duct contact point possible. Installation adjustments for various heights of fan bases can be accommodated during install by choosing the correct height of the lower duct arms by fastening them in the desired holes of our patent pending Pivot Cams of the Super Hinges. This allows hinge installation on taller or thicker fan bases. The SH-D Standard line of Super Hinges is stocked and ready to ship in sizes to accommodate fans with base dimensions from 10 inches square up to 55 inches.

If a fan exceeds these sizes, our Print-n-Fit forms available on this site will direct you as to which measurements are needed for us to make custom application hinging systems for unique or oversized fan-to-duct hinging scenarios.

Please remember when choosing a Super Hinge hinging system for proper safe support we recommend choosing a model which supports at least 2/3rds of the fan base. This will help eliminate any flex of the fan base and insure a flush contact point between the fan base and the duct surface.

Click here for examples of sizing.

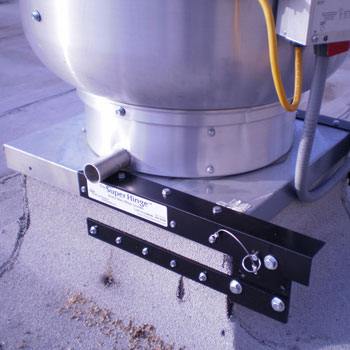

Super Hinge - Standard Version
